Electrical Resistivity Surveying in Salt Lake City

A mid-rise project near the University of Utah stalled for three weeks last fall. The geotechnical report flagged a potential shallow water table beneath the site, but the borehole spacing was too wide to map the lens. We mobilized a VES array across the property. In one afternoon, the resistivity profiles picked up a perched aquifer at 12 feet and a dry paleochannel cutting diagonally under the southeast corner. That data changed the dewatering plan and saved the excavation schedule. For subsurface exploration in Salt Lake City, where ancient Lake Bonneville sediments create abrupt lateral changes, electrical resistivity fills the gap between discrete borings. When we need continuous profiles without disturbing sensitive urban sites, the method delivers. We often pair it with seismic refraction to cross-validate bedrock depth, especially where gravel lenses scatter the seismic signal.

Resistivity is one of the few geophysical methods that directly responds to both lithology and pore water, which makes it indispensable in Salt Lake City's mixed lakebed stratigraphy.

Service characteristics in Salt Lake City

The valley floor beneath Salt Lake City is a quilt of Lake Bonneville clays, deltaic sands, and alluvial fan gravels washed down from the Wasatch Range. Resistivity contrasts are strong here. Silty clay reads 15 to 50 ohm-m. Clean gravel pushes past 300 ohm-m. That separation makes VES particularly effective for mapping the boundary between compressible lakebed deposits and competent fan material. Depth penetration with a Schlumberger array routinely reaches 150 feet, enough to evaluate most foundation zones in the downtown corridor. For deeper investigations near the Wasatch fault zone, we extend the electrode spread and resolve stratigraphy to 300 feet. Data inversion runs through smooth-model least-squares algorithms, and we ground-truth results against existing boring logs. The output is a 2D resistivity section showing layer thickness, water saturation, and potential voids. In our experience, a well-calibrated VES survey along the I-15 corridor can distinguish natural clay from undocumented fill in a single afternoon. That speed matters when deep excavations press against tight construction windows.

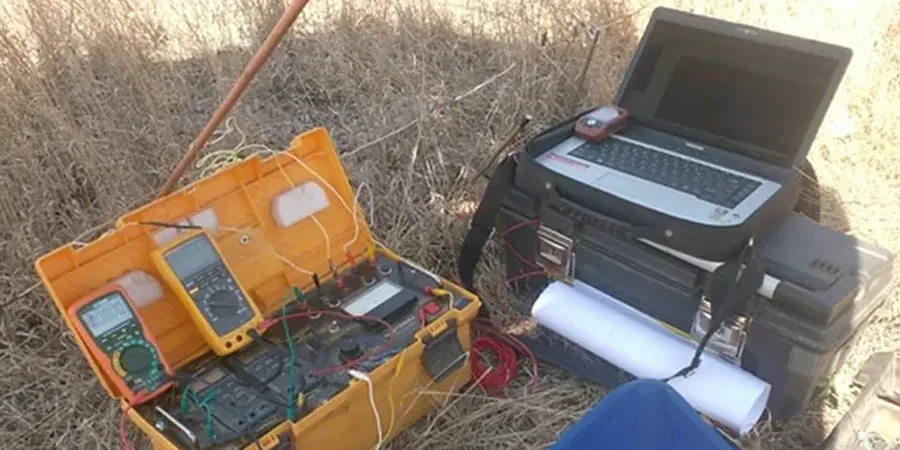

Electrical Resistivity Surveying in Salt Lake City

Parameter	Typical value
Array configuration	Schlumberger (vertical sounding); Wenner for lateral profiling
Maximum investigation depth	100 to 300 ft depending on spread length and site conditions
Typical resistivity range	5 ohm-m (saturated clay) to >500 ohm-m (dry gravel, bedrock)
Electrode spacing	AB/2 from 5 ft to 500 ft; MN adjusted for signal quality
Data acquisition	Four-electrode DC resistivity meter with stacking and SP compensation
Inversion method	Smooth-model least-squares (Occam) or solid block inversion
Output deliverables	1D sounding curves, 2D resistivity cross-sections, layer model tables
Applicable standards	ASTM D6431 for surface resistivity; correlated with ASTM D1586 boring data

Risks and considerations in Salt Lake City

IBC Chapter 18 and the local Salt Lake City amendments require adequate subsurface exploration for all Category II and III structures. The Wasatch Front is one of the most seismically active urban corridors in the interior West. Liquefaction potential in saturated, fine-grained Lake Bonneville sediments is a known hazard throughout the valley. Resistivity surveys identify those saturated zones before a single footing is poured. Skipping this step risks designing foundations on material that will lose strength during a design-level earthquake. We have seen projects near the Jordan River where a 10-foot-thick saturated silt layer was missed by widely spaced borings. The VES profile caught it. The structural engineer upgraded the foundation system before construction, not after. In Salt Lake City, the cost of a resistivity survey is negligible compared to the liability of an undetected subsurface anomaly.

Need a geotechnical assessment?

Reply within 24h.

Email: [email protected]

Applicable standards: IBC Chapter 18 (Soils and Foundations), ASCE 7-22 (Minimum Design Loads – Seismic), ASTM D6431 (Standard Guide for Using the DC Resistivity Method), Salt Lake City Zoning Ordinance – Geotechnical Report Requirements

Our services

Our electrical resistivity services in Salt Lake City cover the full range of investigation depths and site conditions, from tight urban lots to open undeveloped parcels along the Wasatch Front.

1D Vertical Electrical Sounding (VES)

Point soundings at specified locations to map layer thickness and resistivity with depth. Ideal for foundation design, groundwater exploration, and borrow source evaluation.

2D Electrical Resistivity Tomography (ERT)

Multi-electrode profiles producing continuous cross-sections. Applied along pipeline alignments, slope faces, and fault trace investigations across the Wasatch fault zone.

Combined Geophysical Surveys

Integrated resistivity and seismic refraction for bedrock mapping, plus MASW for shear-wave velocity profiles required by IBC seismic site classification.

Common questions

How deep can a resistivity survey investigate in the Salt Lake Valley?

With a standard Schlumberger array and maximum electrode separation of 500 to 800 feet, we routinely reach investigation depths of 150 to 250 feet. For deeper targets, such as basin-fill structure near the Wasatch fault, we extend the spread further and can resolve resistivity contrasts down to 400 feet. The actual depth depends on site access, surface conditions, and the resistivity contrast of the target layers.

What does a VES survey cost for a typical residential or commercial lot?

For a standard lot in Salt Lake City with three to five VES sounding points, the fee ranges from US$660 to US$980. The final figure depends on the number of soundings, electrode spread length, site accessibility, and whether we integrate the results with existing boring data. Each quote is project-specific and includes data processing, inversion modeling, and a signed geophysical report.

Can electrical resistivity distinguish between Lake Bonneville clay and buried fill material?

Yes, and this is one of the most common questions we get on redevelopment sites downtown. Native Lake Bonneville clay typically shows low resistivity of 10 to 40 ohm-m when saturated. Historic fill, especially if it contains brick fragments, ash, or gravelly debris, reads higher, often above 80 ohm-m. The contrast is clear on a well-calibrated 2D profile. We ground-truth the interpretation with existing borehole logs whenever available.
